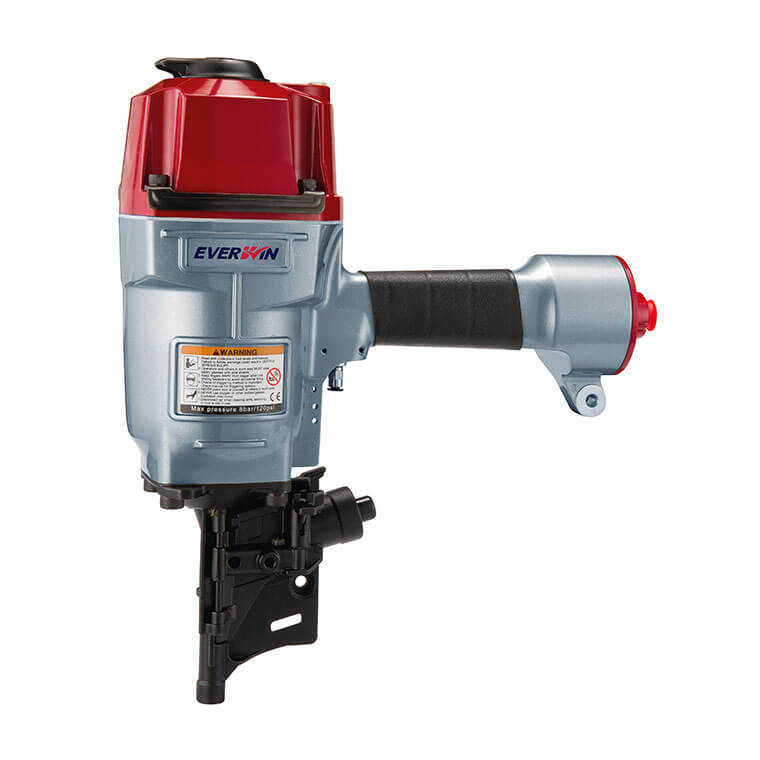

PN80PAL
MACHINE-MOUNTED 80mm (3-1/4") Wire Coil Nailer

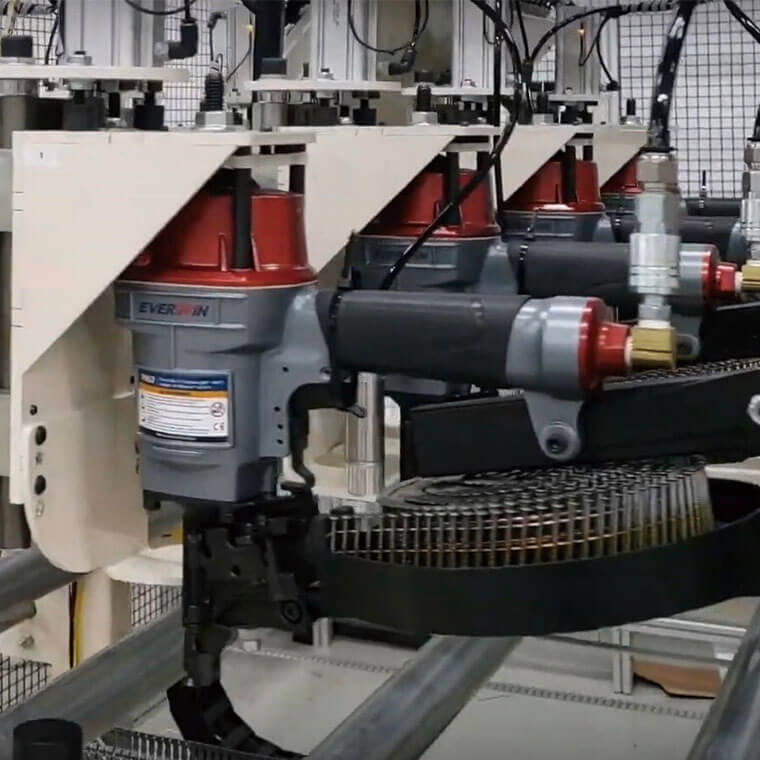

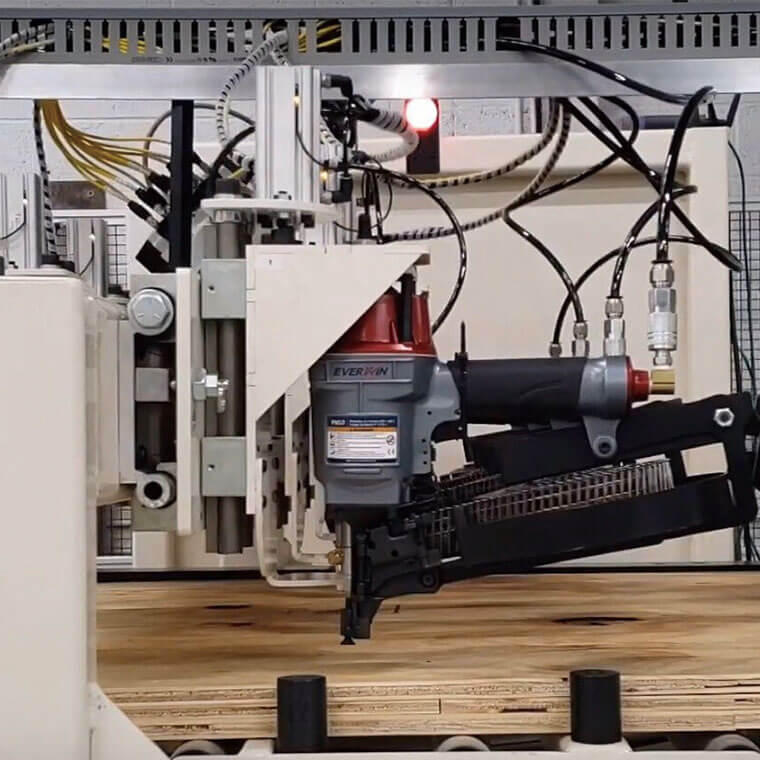

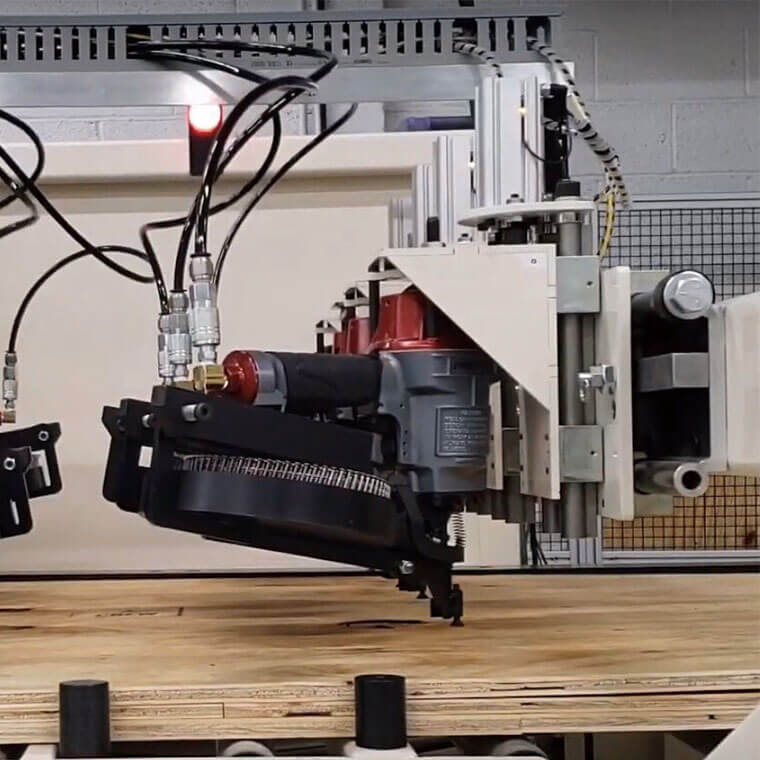

The PN80PAL machine-mounted nailer is designed to drive up to a 3-1/4" nail. Built for high-speed/high-volume machine operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
- Machine-Mounted
- Pallet Assembly
- Crate Assembly
- Manufactured Housing
APPLICATIONS
FEATURES
AUTOMATION-GEARED
For machine-mounted applications
SUFFICIENT DRIVING ENERGY
Powerful for heavy duty applications
HIGH SPEED OPERATION
Actuates up to 15 CYCLES/SECOND
PLUG & PLAY SETUP
Remote control valve assembly
ACTUATION SPEED BOOSTED
Geared with high flow driver guide
ADJUSTABLE METAL EXHAUST COVER
Boosts flexibility in a durable manner
EXCLUSIVE COMPONENT TREATMENT
Special-treated nose and driver
ENLARGED 3/8" INLET
Boosts air refill speed
TOOL SPECIFICATION
| Weight | 3.3 kgs (7.2 lbs) |
|---|---|
| Height | 362mm (14.2") |
| Width | 112mm (4.4") |
| Length | 307mm (12.1") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 837 |
| Air Consumption (L/cycle @90psi) | 1.8 (3.8 cfm) |
FASTENER SPECIFICATION

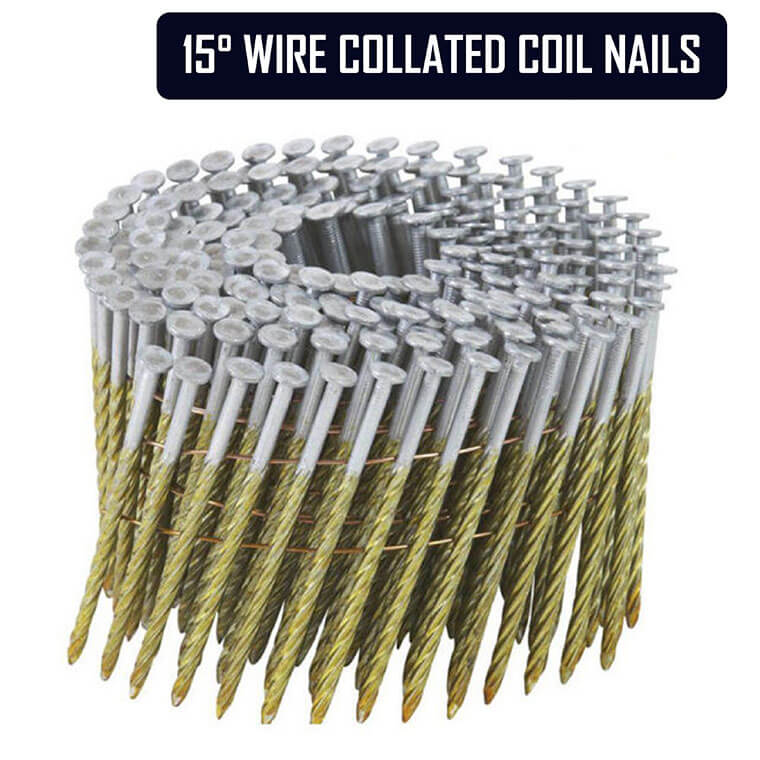

| Type | 15° Wire Collated Coil Nails |
|---|---|
| Loading Capacity | 2000 ~ 3000 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 50~83mm (2"~3-1/4") |
| Nail Head Dia. | 5.7~7.2mm (0.224"~0.283") |
| Nail Shank Dia. | 2.5~3.3mm (0.099"~0.131") |
